Joint Set A
Basic Joint

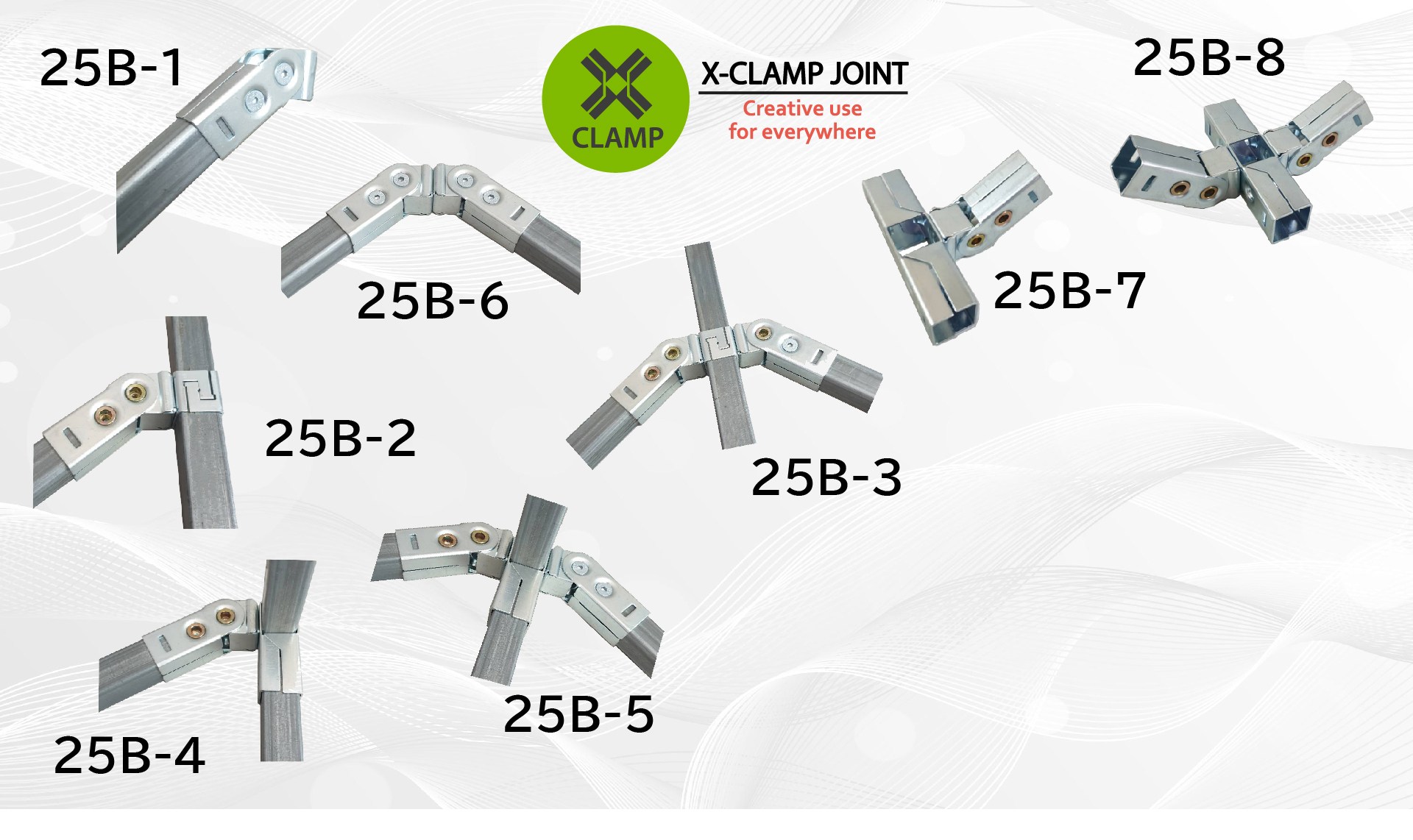

Joint Set B
Adjustable Joint
Why X-CLAMP?
Existing joints are now used to wear and fasten by using glue, belt clamping, tapping, etc.The joints are characterized by a fixed pattern. Multiple shaped joints are required to support a wide variety of applications. The wastage that had to be bought in large numbers.Also sometimes cannot be reused.And some jobs require skilled welders. They also have higher wages than general technicians.Thus came the idea of reducing the number of types of joints but still able to support a variety of tasks. Anyone can use it without the need for welding and can be reused. This can reduce costs such as labor cost, material cost, etc.
The X-Clamp is a joint that can be used immediately by anyone can do it.No welding skills required, reducing work leadtime.When not in use, it can be disassembled. takes up little storage space This makes the best use of the space and can also be reused. Adapted to use in other formats is a resource saving and reduce future environmental problems.
Products

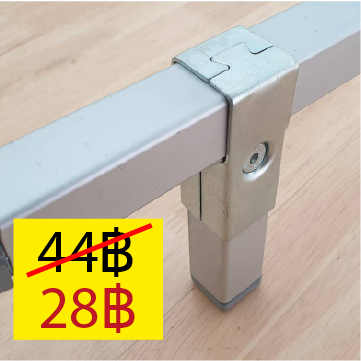

A25-1
25-1 = 1pc, 25-2 = 1pc, Nut = 1pc

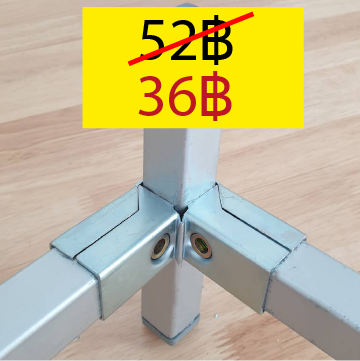

A25-2
25-4 = 1pc, 25-6 = 1pc, Nut = 2pcs
A25-3
25-3 = 2pcs, Nut = 2pcs
A25-4
25-3 = 1pc, 25-4 = 1pc, 25-5 = 1pc, Nut = 3pcs

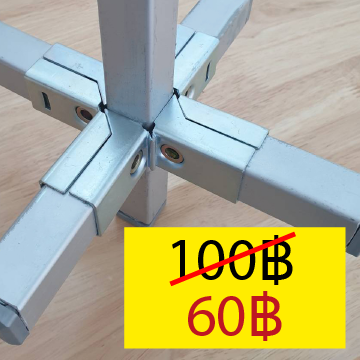

A25-5
25-4 = 2pc, 25-5 = 2pcs, Nut = 4pcs

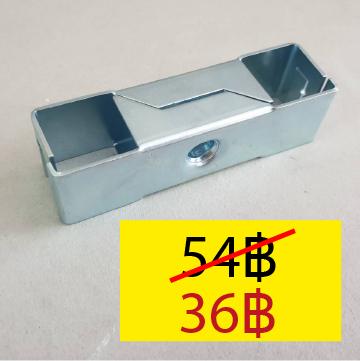

A25-6
25-7 = 2pcs, Nut = 1pc

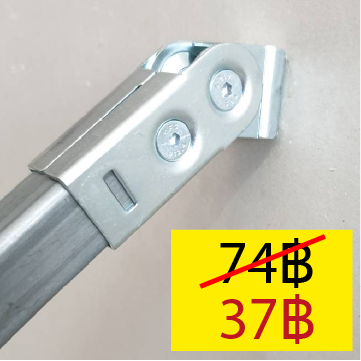

25B-1
25-9 = 1pc, 25-10 = 1pc, Nut = 2pcs

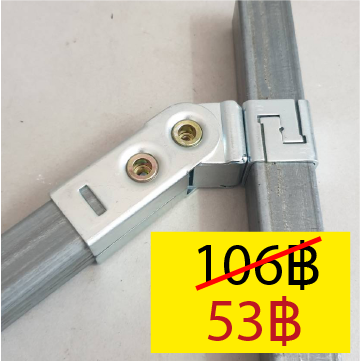

25B-2
25-8 = 1pc, 25-9 = 1pc,25-10 = 2pcs, 25-14 = 1pc, Nut = 2pcs

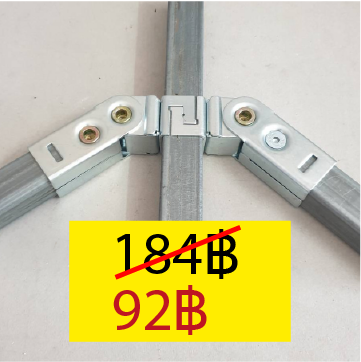

25B-3
25-8 = 2pcs, 25-9 = 2pcs, 25-10 = 4pcs, Nut = 4pcs

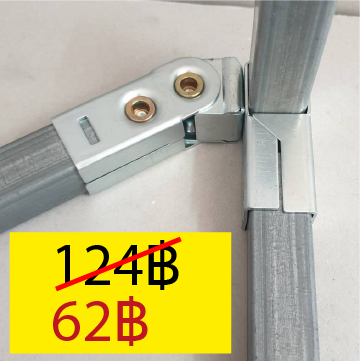

25B-4
25-2 = 1pc, 25-11 = 1pc,25-9 = 1pc, 25-10 = 2pcs, Nut = 2pcs

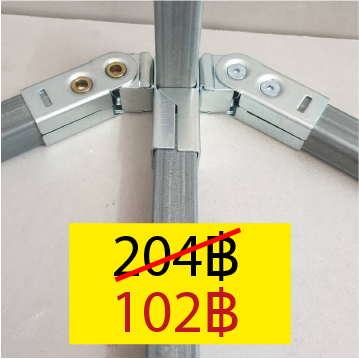

25B-5
25-11 = 1pc, 25-12 = 1pc,25-9 = 2pcs, 25-10 = 4pcs, Nut = 4pcs

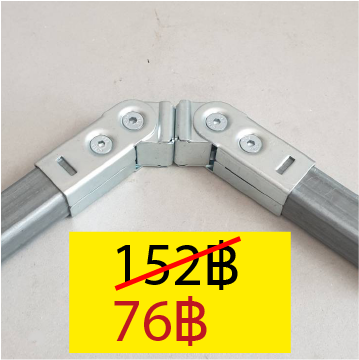

25B-6
25-9 = 2pcs, 25-10 = 4pcs, Nut = 4pcs

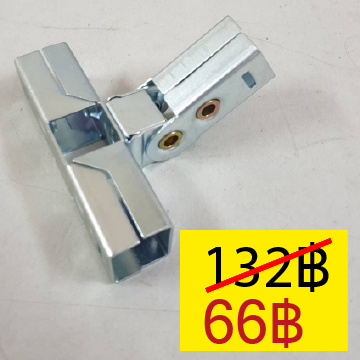

25B-7
25-3 = 1pc, 25-13 = 1pc,25-9 = 1pc, 25-10 = 2pcs, Nut = 4pcs

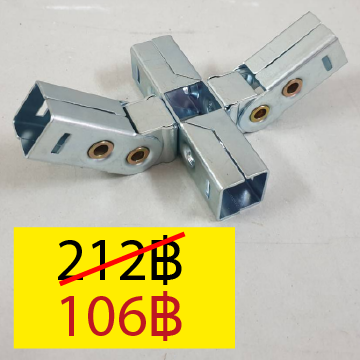

25B-8
25-13 = 2pcs, 25-9 = 2pcs,25-10 = 4pcs, Nut = 6pcs

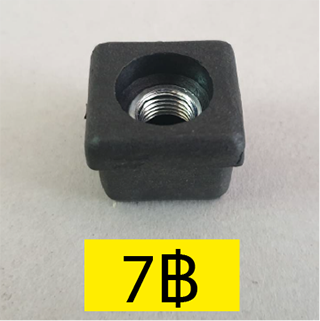

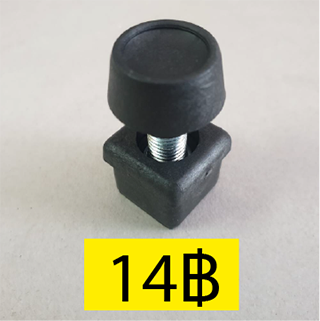

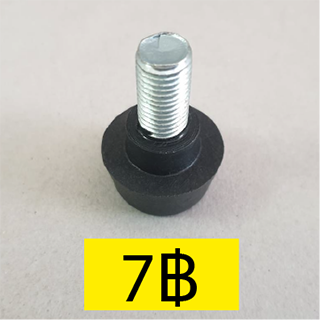

Adjustable Leveling
Height (male) adjust size 1 inch
Adjustable Leveling
Height (female) adjust size 1 inch
Adjustable Leveling Set
Table's height adjust(male-female) size 1 inch

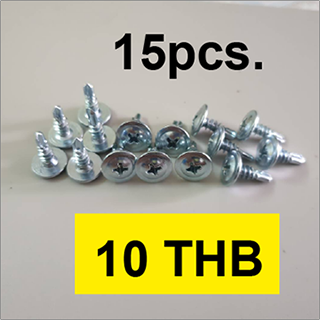

Wafer head self drilling screw
Size 8*1/2(13mm) 15pcs/pack

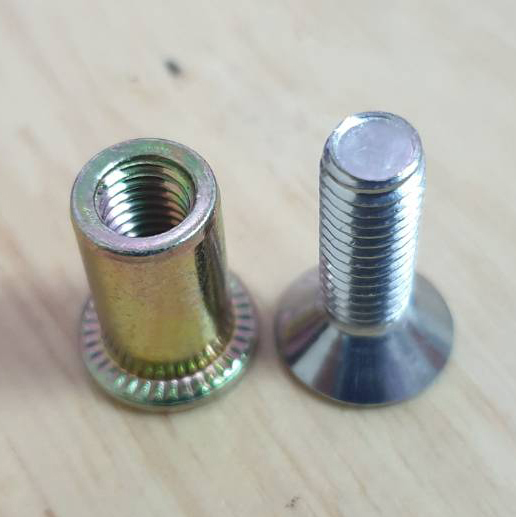

Rivet nut+screw M6
price 5 THB/set
Rivet Nut M6
Yellow Zinc : price 2.50 THB/pc.
Hex Socket Taper Head Screw M6x20mm
White zinc : price 2.50 THB/pc.
Samples
fence
fence
fence
Fence
Shelf(with wooden planks)
Shelf(with wooden planks)
Shelf(with tile)
Shelf(with tile)
Shelf(with tile)
Frog farming
Fish farming
Fish farming
Fish farming
Chicken farming
Chicken farming
Chicken farming
Chicken farming
Chicken farming
Dog cage
Dog cage
Greenhouse structure
Greenhouse structure
Greenhouse structure
Greenhouse structure
Gable roof
Gable roof
Gable roof
Gable roof
Double Bed
Shelf
Shelf
Shelf
FAQ
Q : After assembled, why the joint is loose?
A : The pipe for our joint must be 1x1 inch pipe (24.5mm up) but can solve that problem by screw tightening
Q : What is the thickness of the steel joint?
A : about 1.6 mm
Q : How many sizes of joints are there?
A : There is one size at the moment but there are plans for more sizes in 2024

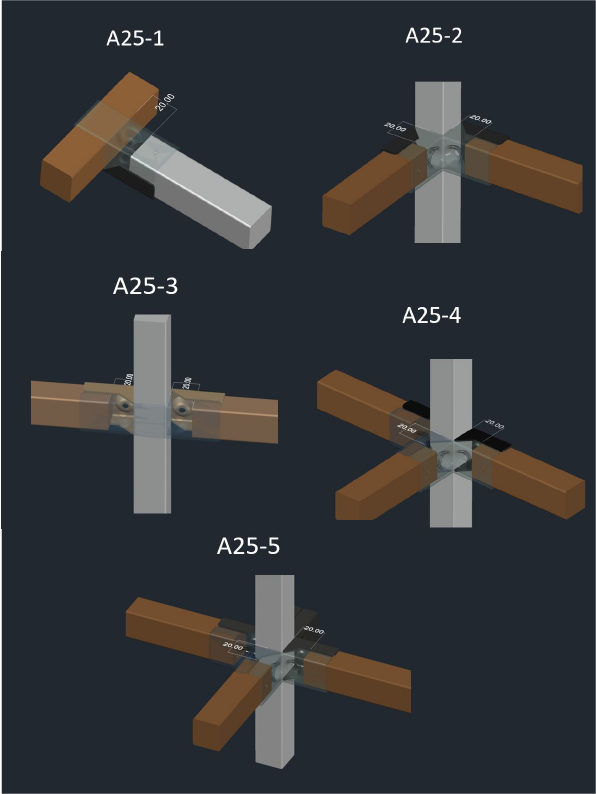

Q : What is the length of pipe cutting ?
A : Reduce 20 mm. as picture below
Q : Why does the joint set B can be rotated?
A : Please see video below
